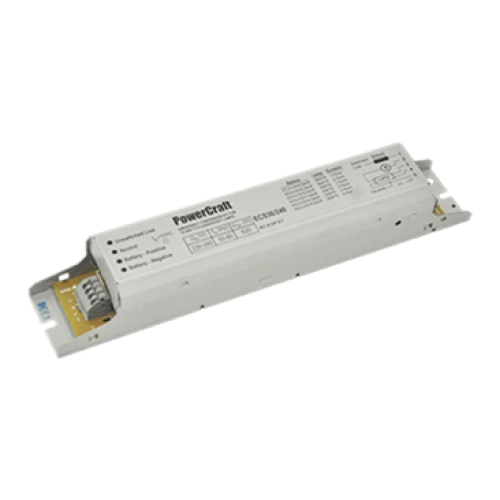

Powercraft ECS36 / 240 STANDARD RANGE

Our ECS Conversion Kit is developed to ensure safe evacuation of all buidings.

Suitable for T5, T8, CFL and 2D fluorescent lamps.
Low standby power consumption of < 4.5W
Short-circuit protection at battery terminals.
IC controlled dual rate charging.
Automatically activated in the event of power cuts
Offer a good luminous flux to facilitate the evacuation.

Technical Specifications

Model No

:

ECS36

Mode of Operation

:

Maintend / Non-Maintained

Lamp

:

T5, T8, 4 Pin CFL and 2D Flourescent Lamps

Rated Duration

:

1 Hour / 2 Hours / 3 Hours

Mains Supply

:

220-240 Volts, 50-60Hz

Power Consumption

:

< 4.5W

Battery

:

High Temperature Nickel Cadmium

Charger

:

Dual Rate

Charge Monitor

:

LED

Test Facility

:

Momentary test switch

Supply Current

:

20mA - 35mA

Safety Features

:

Low battery voltage cut off to prevent over discharge

Max Casing Temp, Tc

:

70°C

Max Ambient, Ta

:

50°C

Fitting Construction

:

Electro-galvanised steel

Standards / Compliance

:

IEC 61347-2-7 (SS 490-2-7), SS 563

Deskripsi

ECS36
