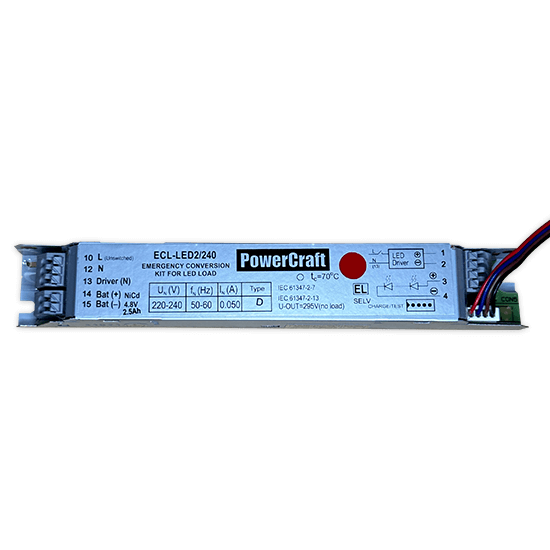

Powercraft ECL-LED2 LED RANGE

Our slimmest LED Conversion kit that is compact and efficient

LED Load
Extra low standby power consumption.
Low-profile casing (22mm x 28mm cross-section)
Suitable for a wide range LED load voltage range
Regulated charger output
Able to power a LED light fitting at a reduce luminous flux for two hours or more
Automatically activated in the event of power cuts
Offer a good luminous flux to facilitate the evacuation.

Technical Specifications

Model No

:

ECL-LED2

Mode of Operation

:

Maintend / Non-Maintained

Lamp

:

3 - 70V LED Load

Rated Duration

:

2 Hours

Mains Supply

:

220-240 Volts, 50-60Hz

Power Consumption

:

< 4.0W

Battery

:

High Temperature Nickel Cadmium

Charger

:

Regulated variable rate

Charge Monitor

:

LED

Test Facility

:

Momentary test switch

Supply Current

:

40mA

Safety Features

:

Low battery voltage cut off to prevent over discharge

Max Casing Temp, Tc

:

70°C

Max Ambient, Ta

:

50°C

Fitting Construction

:

Electro-galvanised steel

Standards / Compliance

:

IEC 61347-2-7 (SS 490-2-7), SS 563, IEC 61347-2-13, IEC 62384
